View the Result

Parent Previous Next

View the result

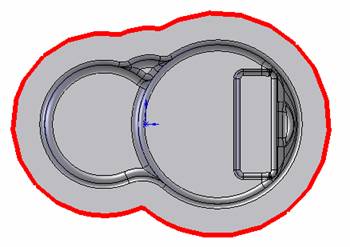

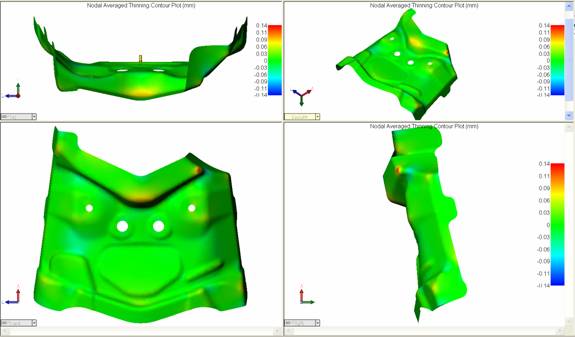

Click 3DQuickForm, Show thinning  to show the thinning. Blue is thicker than blank thickness, indicating wrangling, RED is thinner than blank thickness – break

Mesh size and accuracy

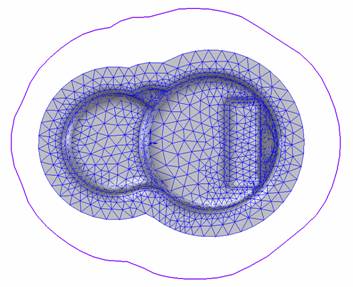

took 20s second to solve

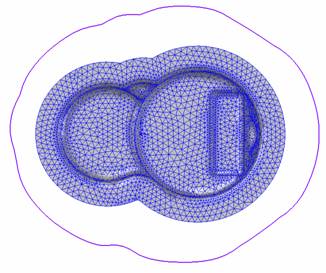

took 45 seconds to solve

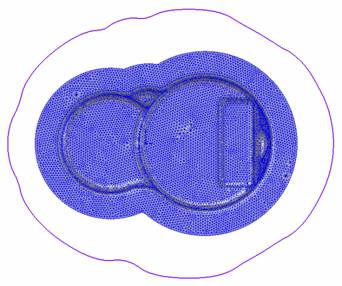

took 3 Minutes to solve

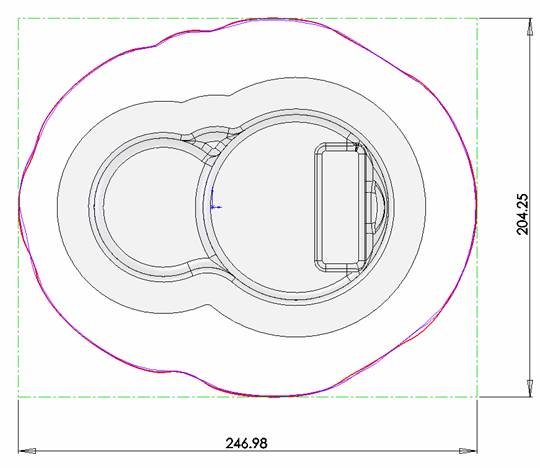

Red profile is output by the finest mesh, the maximum deviation between the finest and the coarsest mesh is 2.3 mm; ~ 1% of the blank size



Simulation fail

Simulation will be fail under the following conditions:



Fail reason

Syndrome

Poor mesh quality

    A projected sketch will be created

Part complexity



Warning message for self-intersecting profile







Animation

Animation of the forming result can be viewed.
