3DQP Dowel

To create a dowel symbol in a SolidWorks Drawing Document.

1. Click to start 3DQP Dowel.

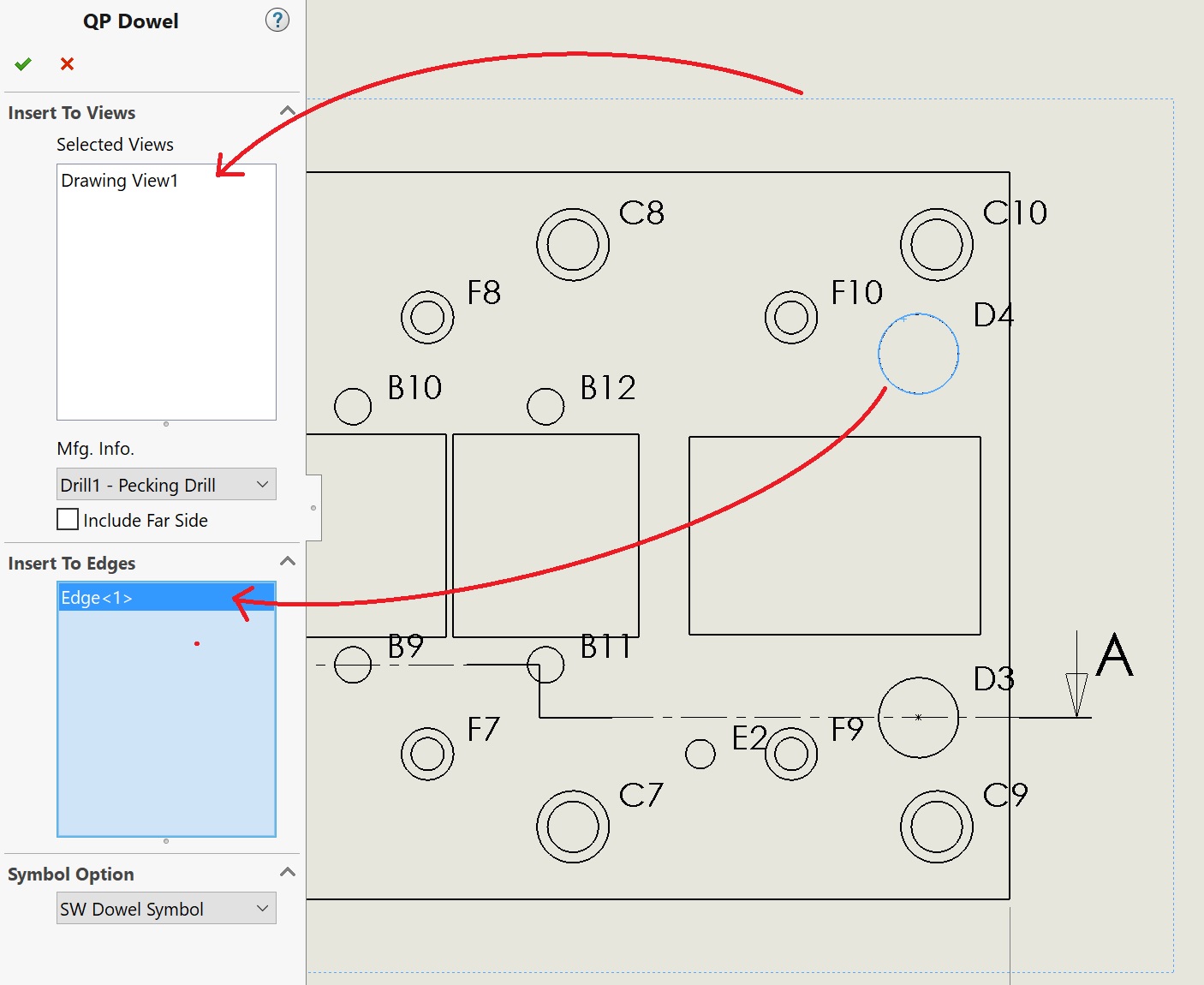

2. Select the drawing view of the symbol to be placed and a circular edge, select the dowel symbol.

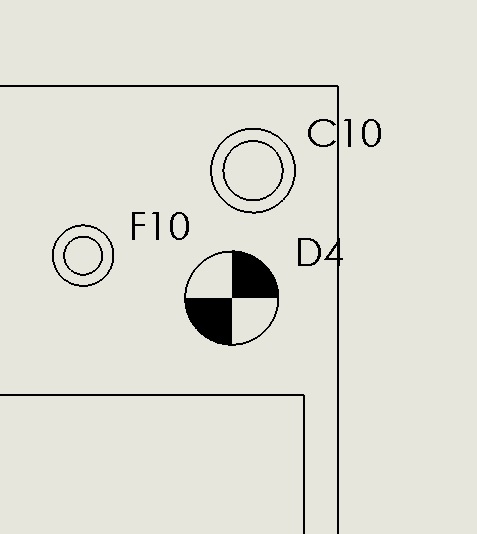

3. Click to finish.
