3DQP_AHT_MfgInfo.txt

It is a pre-processing function to add manufacturing information to geometry by face color. Color code map to machining code is set up in a text file located in <3DQP>\Database\3DQP_AHT_MfgInfo.txt.

<R><G><B><NAME><DESCRIPTION>

#233    206      150      Drill1    Pecking Drill

#255    128      255      CB       CounterBore

#128    64        64        Mill1    Pocket Mill

#255    128      0          WEDM1          WireEDM 2 cut

#255    255      255      JG1      Jig Grind

To customize color code:

  1. Click 3DQuickPress, Drawing & Machining, Paint Mfg. Info.

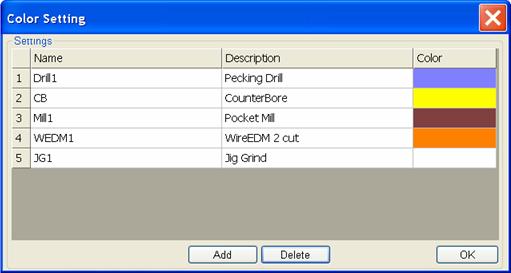

  2. Click Edit Color Setting to launch Color Setting

  1. Click Add to insert a new line and input EDM1 for Name and Burn Clearance for Description. Select Red color
  2. Click OK and then Yes to confirm the modification of setup file.
  3. Click OK in Properties Manager to finish.
