Add Strip Layout

Parent Previous Next

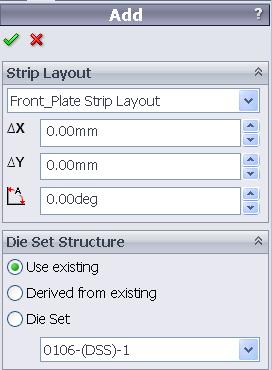

PropertyManager for Add Strip Layout

        Strip Layout - Select or browse the strip layout that is going to be added to the punch design.

o       X - offset of new strip layout in x-driection

o       Y - offset of new strip layout in y-direction

o       Angle - rotation of strip layout about z-direction

        Die Set Structure - Select to use new die set structure or existing one

o       Use existing - use the existing die set structure of the punch design

o       Derived from existing - use a new die set structure that is derived from the existing one

o       Die Set - set the die set structure to use in the list
