Annotation Feature

Parent Previous Next

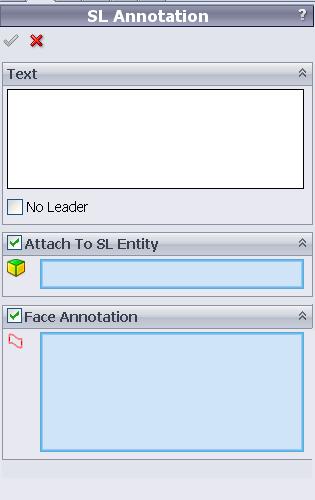

PropertyManager for Annotation Feature

Text – text to be displayed in the annotation feature

No Leader - is an option to set whether to have leader for the annotation feature

Attach To SL Entity - select the strip layout entity which the annotation feature to be attached to

Face Annotation - select the SolidWorks surface body which the annotation feature to be attached to
