Auto Drill Hole

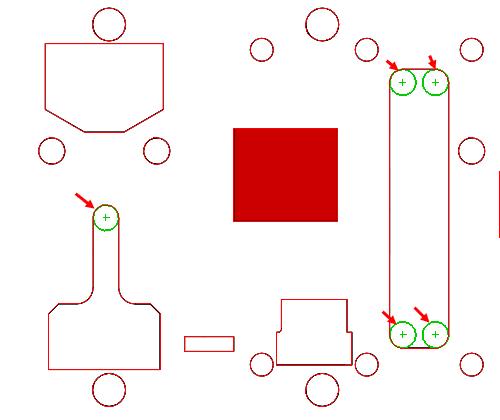

Create sketch containing circles indicate drill position.

To create drill hole sketch:

  1. Click 3DQuickPress, Drawing & Machining, Auto Drill Hole
  2. Select the face to be drill
  3. Set 0.00 to Step
  4. Click OK to finish
