Create Strip layout drawing

Strip Layout ›› Enquiry ››
Parent Previous Next

Create Strip layout drawing

To create strip layout drawing:

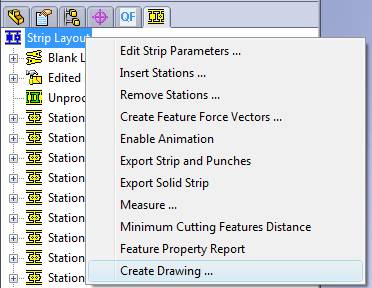

  1. Right Click on Strip Layout design tree and click Create Drawing…

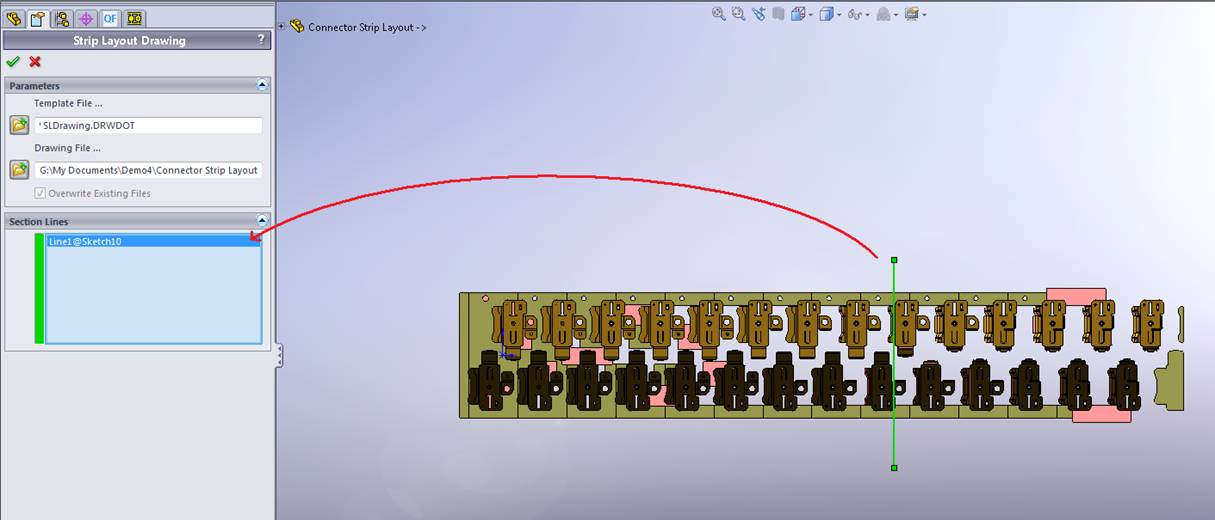

  1. Browse for the drawing template and enter the output drawing name. Then select the section line if there is sectional view in the drawing.

  1. Click OK to create the drawing.
