 Edit PRL Parameters

After the insertion of PRL components, the system parameters and user parameters can be modified by PRL Parameters.

To edit PRL Parameters:

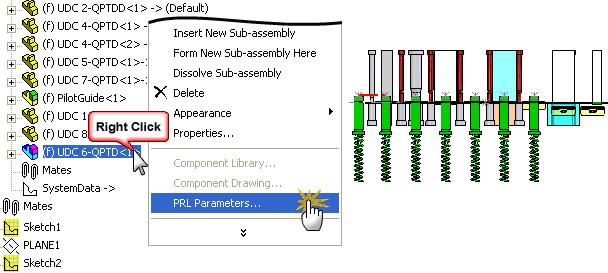

  1. Right click the inserted PRL and select PRL Parameters from SolidWorks assembly tree

  1. Edit the parameters
