 Export Faces

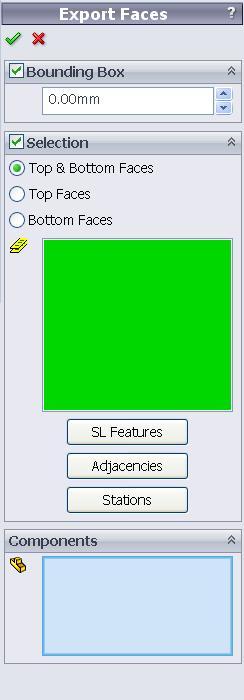

 Export face to component is used to export selected faces from the strip layout to any part document inside Punch Design Assembly for the modeling of punch and die tool set.

Select to export only faces inside Bounding Box of selected target components.

Toggle the selection to export both Top & Bottom Faces or either Top Faces or Bottom Faces.

SL Features button automatic select all faces belong to the selected feature

Adjacencies will select all the faces connected to the selected face. Remember to hit SL Features button to put all highlighted faces to the selection box.

Stations option export the whole station to the selected part.
