Link Manager

Parent Previous Next

Link Manager Design Tree

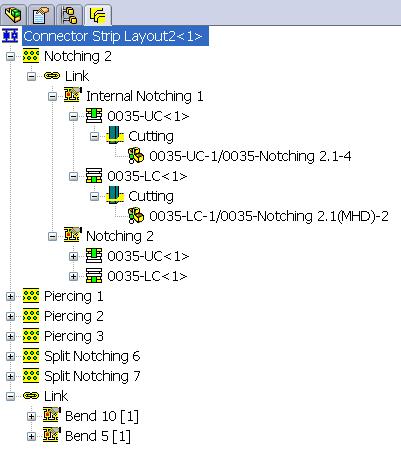

Link Manager Design Tree is created after the punch design assembly is created. It lists all the link information between any created component and strip layout features. All the icon in the tree have shortcut menu to link/unlink the component.

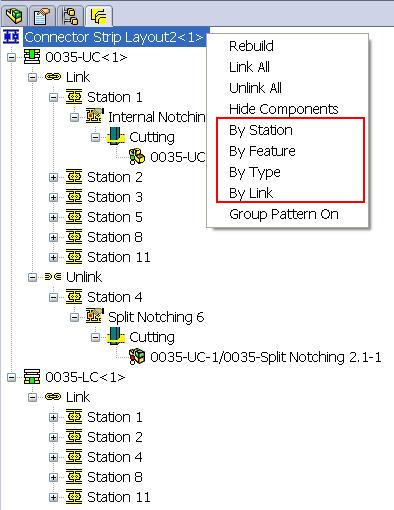

Different type of display supported by link manager tree

3DQuickPress can list the link information in  different sorted type.

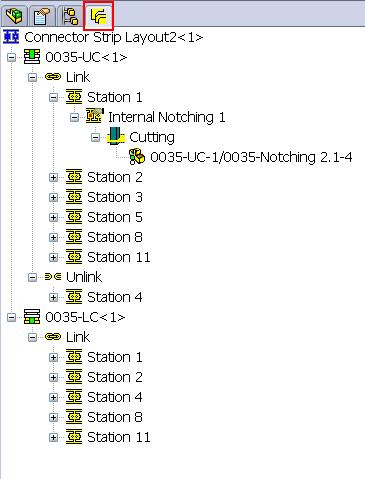

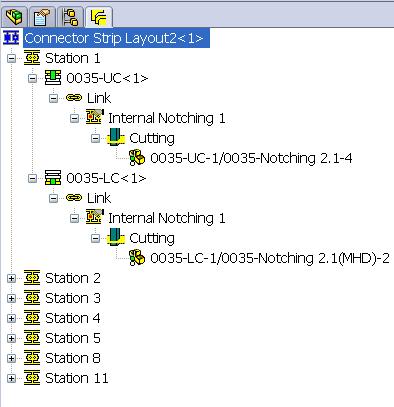

By Station

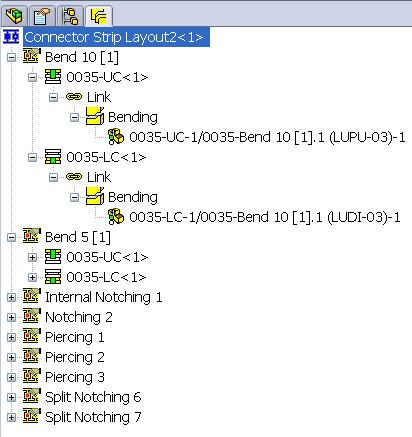

By Feature

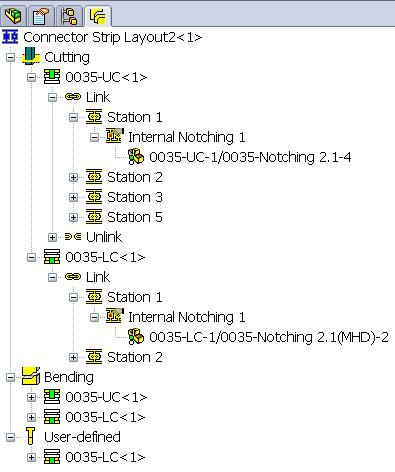

By Type

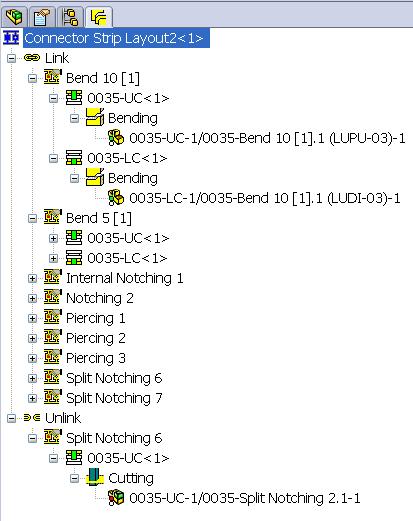

By Link

Group Pattern On

Tree Basic

Most of the functions for link manager are accessed through the shortcuts. Link/unlink and hide/show functions for individual link and component are available for each items in the tree.



To access Link Manager functions:

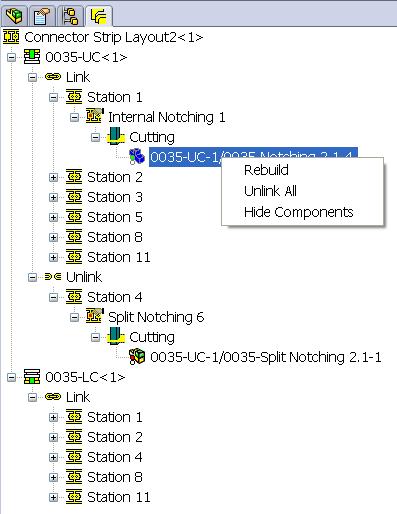

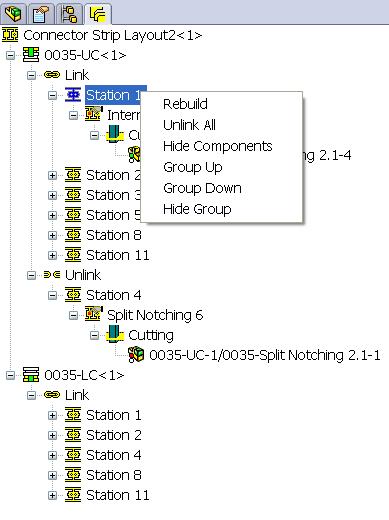

  1. Right Mouse Click on Link Manager Design Tree Item
  2. Select any function from the popup menu
