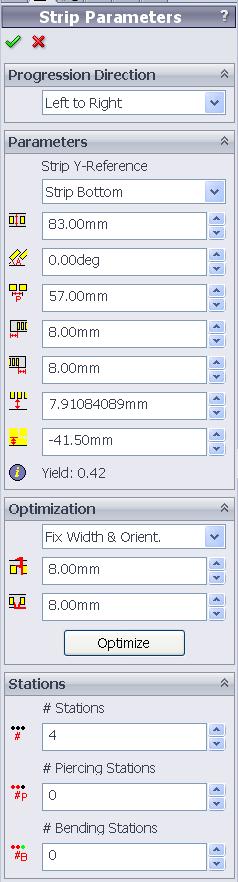

PropertyManager for Edit Strip Parameter

Progression Direction

Set the progression of the stock from Left to Right or vice versa

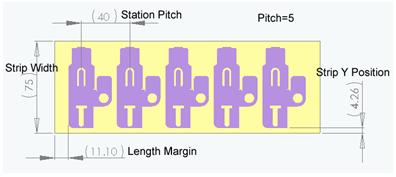

Parameters

Optimization

Fix Width & Orientation To set the pitch based on the minimum distance between blanks

Fix Orientation The blank will not be rotated during optimization

Fix Width Blank will be rotated to fit inside the stock with the best yield

No Constrain Blank will be rotated as well as the stock will shrink to fulfill Width margin

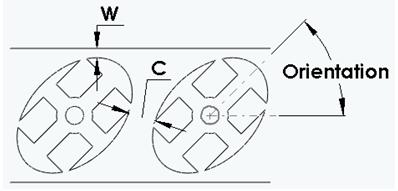

W & C below are the Width Margin and Station Clearance respectively

Stations

# Stations Total number of stations

# Piercing Stations Automatic distribute all the piercing into this number of station. 0 means manual mode and all the operation are set into the  Unprocessed Features Folder

#Bending Stations Automatic distribute all the bending into this number of stations. 0 means manual mode

The automatic piercing is used to reduce tedious manual assignment of piercing into stations, user can modify the piercing later on
