PunchDesignTemplate

PunchDesignTemplate contains important folder for punch design.

01 folder contains the punch design assembly template, 3DQuickPress will replace the diesetstructure.sldprt here by the one in dieset template.

Bend Template folder under Inch and Metric is the folder containing PRL bend template

1st level under Bend Template folder is the bend type

L=LBend

U=U Bend

Z = Z Bend

2nd level under Bend Template folder is the bend direction folders

D=Bend Downward

U=Bend Upward

3rd level under Bend Template folder is the folder containing the PRL part and assembly

The top level component (part or assembly) must have the same name as the 3rd level folder containing it. Drawing files have the same name as the component file name (not including file extension) will be used together with the PRL.

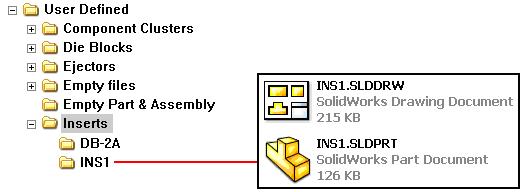

User Defined folder under Inch and Metric is the folder containing PRL User Defined Component template.

1st level under User Defined folder is the Functional folders

2nd level under User Defined folder is the folders containing the PRL part and assembly
