Set the relative distance between 2 blanks

If entities from multiple blanks were selected, 3DQuickPress always uses the 1st selection as reference and moves the blank containing the last selected entity

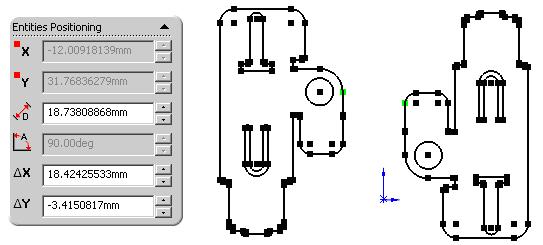

        Select one point from each blank

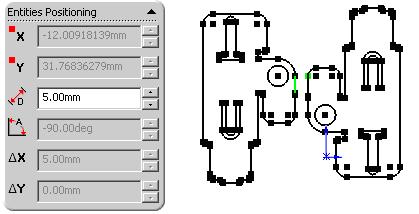

        Select one point and one line or vise versa

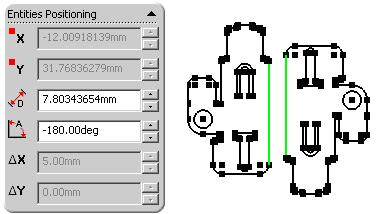

        Select one Line from each blank and they must be parallel
