 Springback Arc

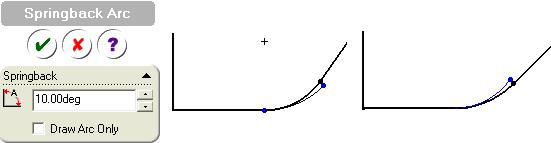

Spring back arc is used to modify sketch of the bend section.

Default setting modifies the arc radius and include angle.

Draw Arc Only option will create a new arc with spring back compensation and users have to manually update the section to match the new values.
