Step/Shoulder Option

Parent Previous Next

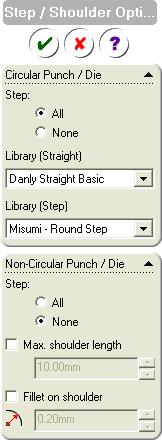

Step/Shoulder Option

Set the default punch information and set the default catalogue for round punch as well

Circular Punch/Die

  • Step
  • All option is used to force all round punch to step punch even the hole (P) diameter is the same as the shank diameter.

Library for straight and step punch is selectable from the list which allow a combination of inch and metric unit.

Non-circular Punch/Die

  • Step
  • All option is used to force all punch to step punch and if the Max. Shoulder length is checked, 3DQuickPress will create shoulder shorter than the specified value to reduce grounding time.

If the Fillet on shoulder is checked, all the sharp corner if the shoulder will be broken by fillet
