 Transform to World CSYS

Transform to World CSYS is used to move a body from a defined coordinate system to the world coordinate system of the current part document.

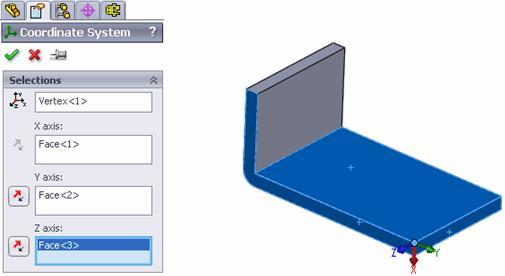

1.                  Click Features,  Reference Geometry, Coordinate System to create a reference coordinate system

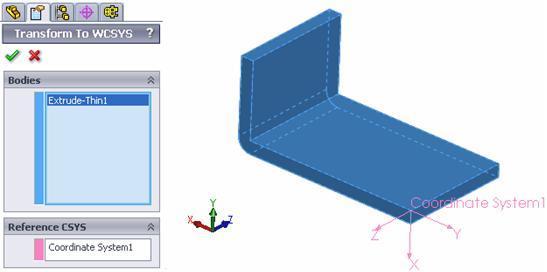

2.                  Click  Transform to World CSYS and select the body and the reference coordinate system

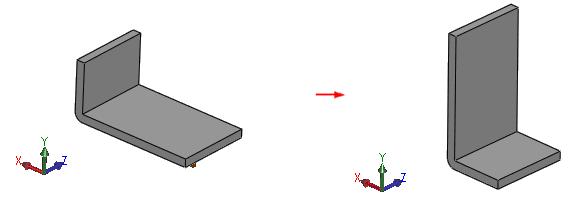

1.                  Click to finish
