 3DQP Draw Datum

To create datum axis and origin on a 2D drawing view.

1. Click  to start 3DQP Ordinate Dimension.

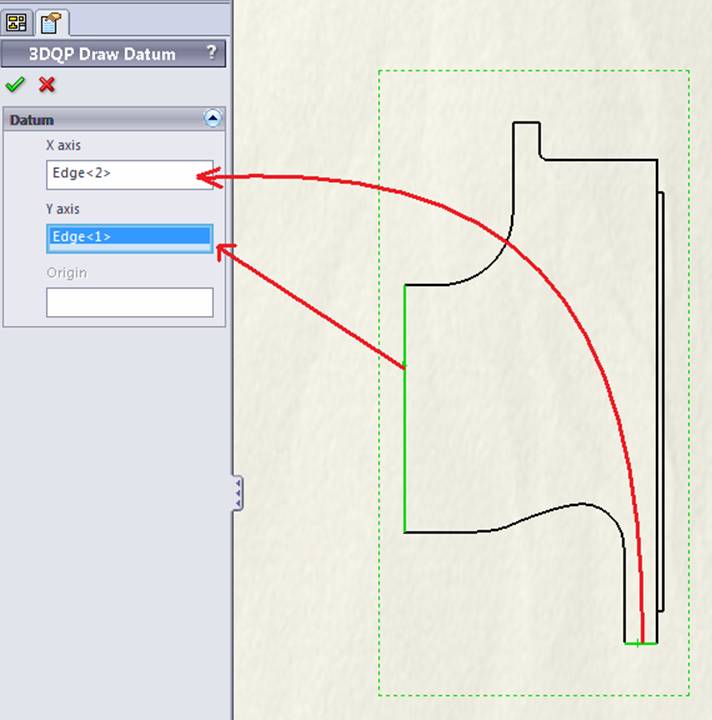

2. Select edges as X-axis and Y-axis.

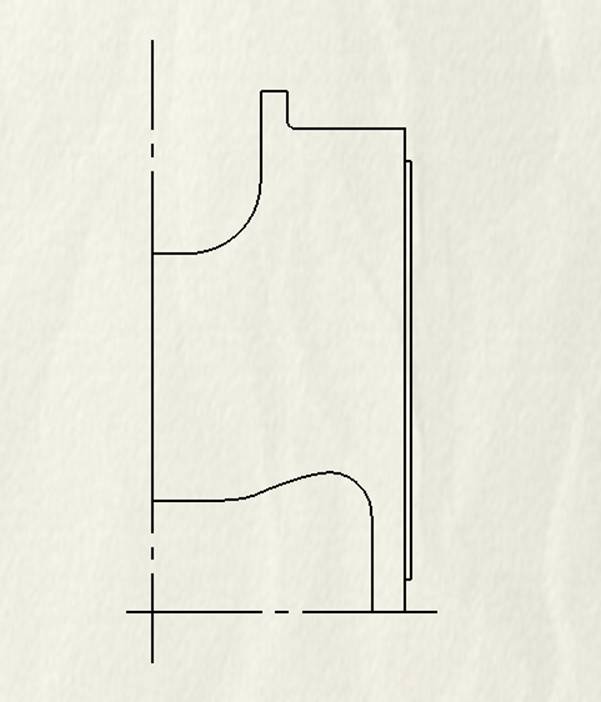

3. Click to finish.
