Assembly swap part and swap part

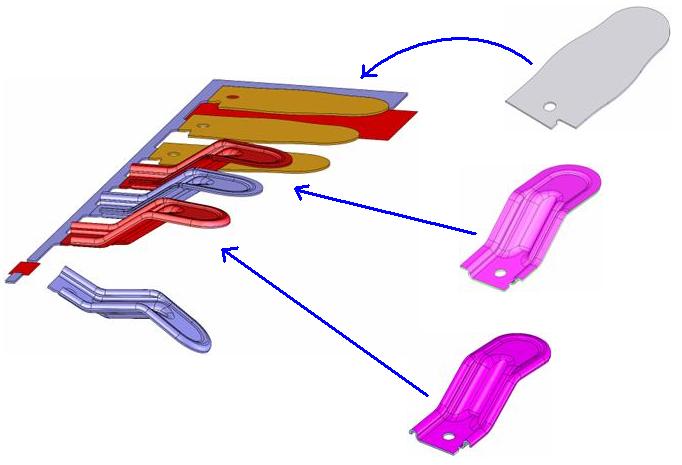

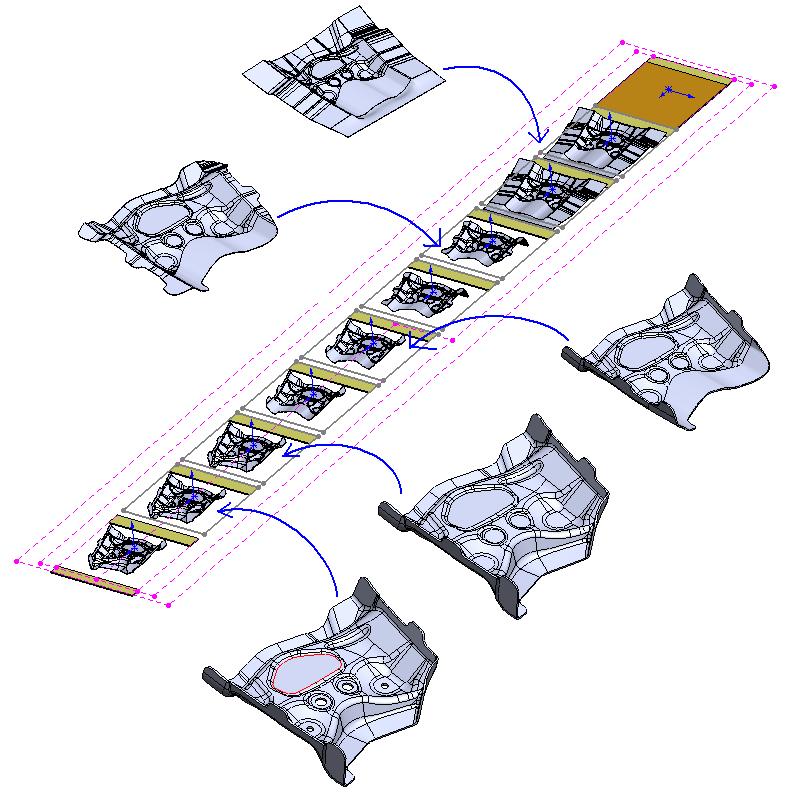

Some metal parts that have complex forming geometry, swapping the deformed part direction in strip layout and punch design is more convenience than unfolding the part feature by feature.

To swap part, you can swap the part in the strip layout or swap the part in the punch design assembly

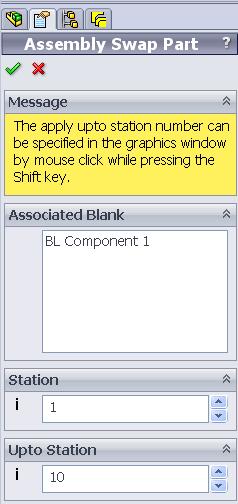

  1. To swap part in strip layout

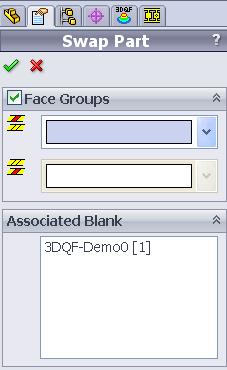

  1. to swap part in punch design assembly
