 AutoFillets

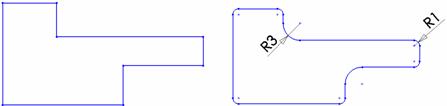

Fillet all sharp corners for selected entities or all entities in the active sketch. Different radii can be assigned to convex and concave corners.

To fillet all sharp corners in a sketch:

1.       Go to edit sketch mode

2.       Chain-select a connected profile

3.       Select corner mode

4.       Click  and input the fillet radius
