Create Bend Centre sketch

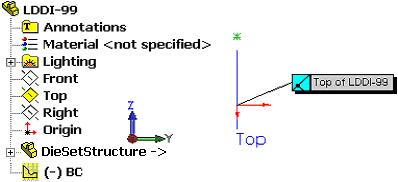

16.              Open LDDI-99.SLDPRT and switch to Right View

17.              Create a sketch on Right plane (Z-Y) and create a point at (-0.0625in,0) and add a coincident relation to the Front plane. We call this point Point BC

18.              Name the sketch to BC
