Create External Bend Section sketch

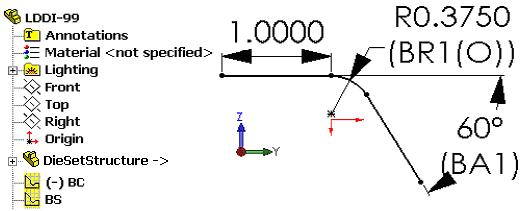

19.              Create another sketch on Right plane and create a profile as following.

20.              Add coincident relationship to Arc centre and Point BC

21.              Rename the dimension names to BR1(O) and BA1 and name the sketch as BS
