Create Bending Die

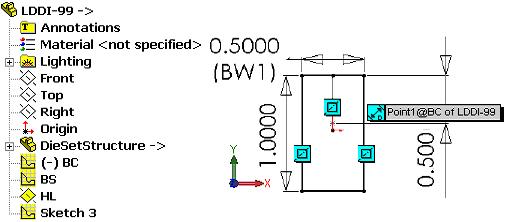

22.                  Create a sketch on HL Plane as following. Name the horizontal0.5 dimension to BW1. Name it to Sketch 3

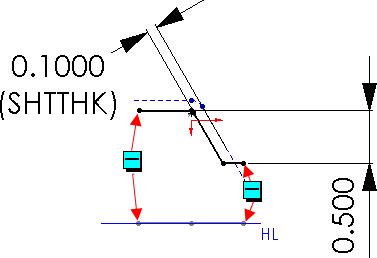

23.                  Create a sketch on Right Plane...Offset sketch BS 0.1in. Add relation and name the offset dimension to SHTTHK. Name sketch to Sketch 5

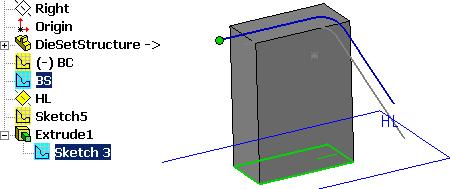

24.                  Select Sketch 3 and click Tools, Boss/Base; Extrude, Up to Vertex and select the end point of Sketch BS

25.                  Cut the Solid by Sketch 5

26.                  Save file and switch window to LD-99.SLDASM
