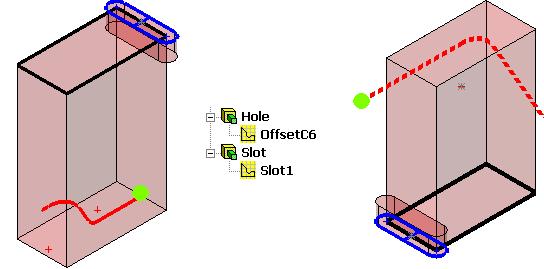

When creating multiple bodies for Hole cutting:

• Sketch OffsetC6 is offset from Sketch2, System Clearance C1-C6, F1-F4 can be used to name the offset dimension so that 3DQP update it when the PRL is used
• Uncheck the Merge Option
• For Hole, the End condition should be Up to vertex and select the round Dot
• For Slot, the End condition should be Up to surface and select the shoulder face.
