 Create L-Bend

To create L-Bend:

  1. Click  Create L-Bend icon from PRL Tool bar

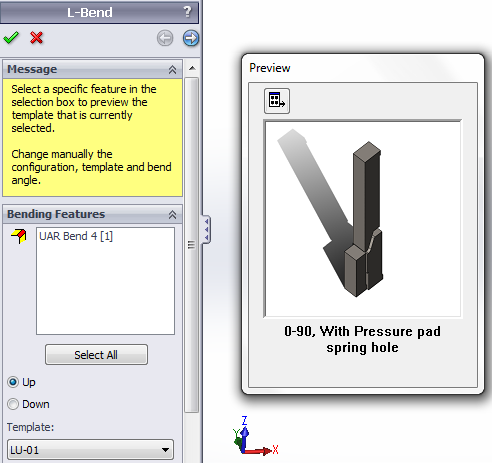

  2. Select the bend from graphic area or Click Select All to automatically select all Bend Features from Strip Layout
  3. Highlight the bend inside Bending Features selection box

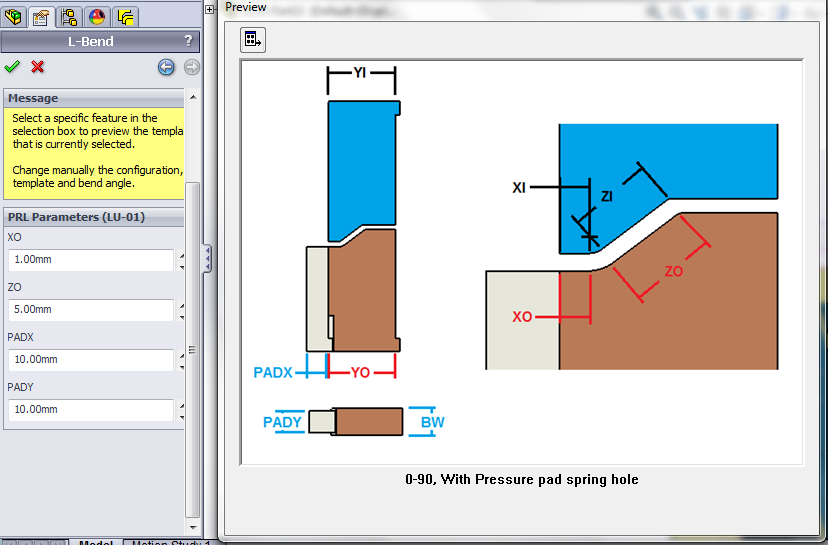

  4. Select bend set from the Template pull down list
  5. Click OK to finish
