 Create cutting punch

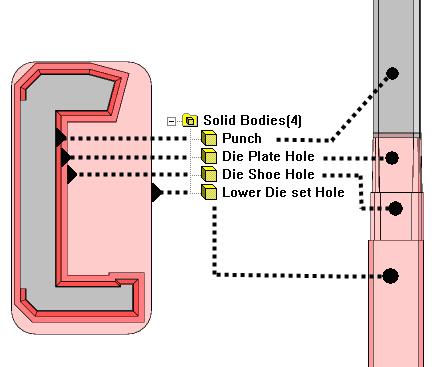

The created punch is a multi-body part with body to create dieset holes.

To create piercing punches:

  1. Click  from PRL toolbar
  2. Pick any cutting punch from the graphic window

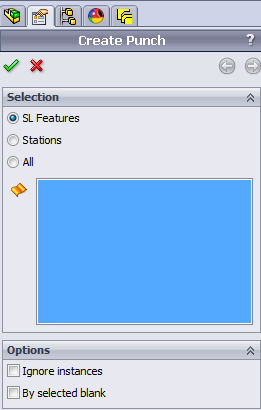

  1. Check All to create all piercing punch

Selection

SL Features set output limited to the selected punches

Stations option automatic select all punches belong to the station at which the 1st punch is selected

All option appends all cutting punch to the selection box

Options

Ignore instances create only the selected cutting punch instead of all instances in a pattern.

By selected blank create only the cutting punches of the selected blank.
