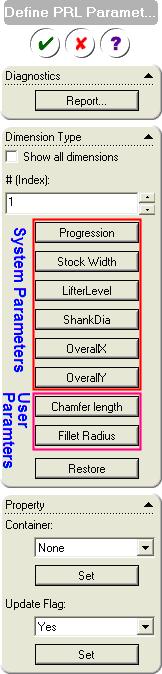

Define PRL

Report – List out defined data and highlight data which is not defined

#Index – To set the 2nd bend information of U-Bend.

System parameters

Progression – To assign the dimension which will be updated by strip layout progression when the PRL is inserted.  Good for pilot

Stock Width – To assign the dimension which will be updated by stock width when the PRL is inserted. Good for lifter and Stork guide.

LifterLevel – To assign the dimension which will be updated by dieset structure the K-value

ShankDia – Set the Shank Diameter of round type component

OverallX – Set the Width of Rectangular type component

OverallY - Set the Height of Rectangular type component

User Parameters

Chamfer Length; Fillet Radius are user defined parameters which is inside a text file under the PRL folder

Restore – Reset all data

Container – Assign component to UC/MC/LC of dieset assembly

Update Flag – If it is set to Yes, 3DQuickPress will update the parameters when this PRL is inserted to punch design assembly
