Die Set Groups

This folder stores the die set group feature.

To create a die set group for a stage tooling:

  1. RMB on the Die Set Groups on the strip layout feature tree
  2. Select Insert Die Set Group…

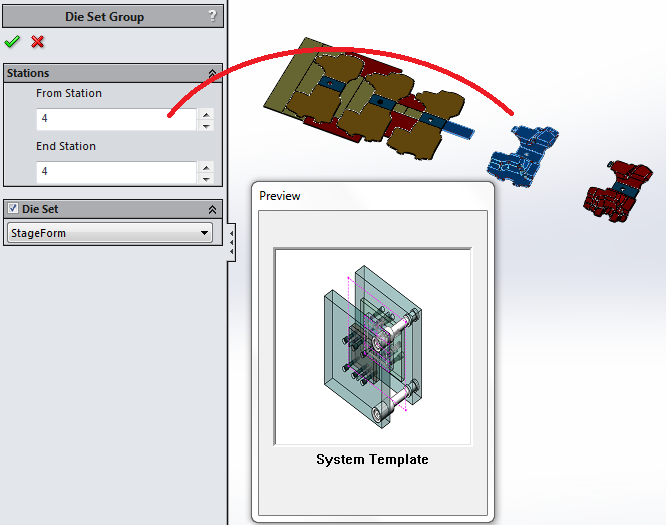

  3. Select the 4th station
  4. Check the Die Set option and select a die set template
  5. Click OK to define the Die Set Group feature
  6. Click Create Punch Design on the 3DQuickPress toolbar
  7. Choose Die Set Group 1 in the Select Die Set Group dialog
  8. Click OK

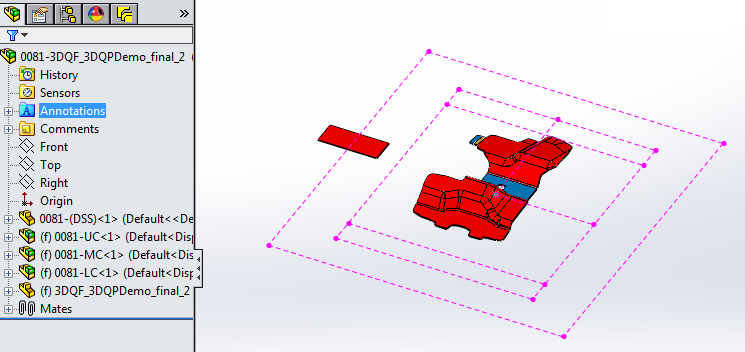

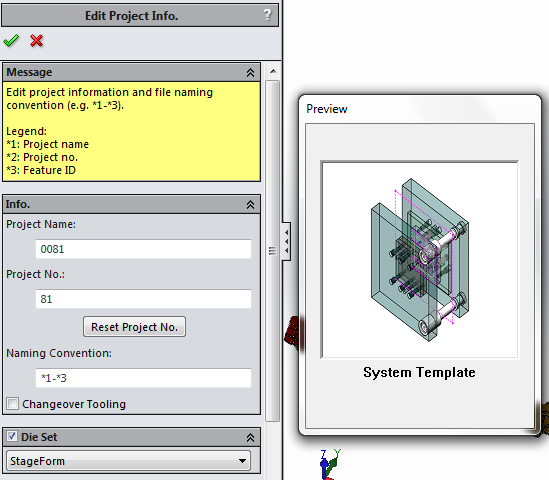

  9. Click OK on the Create Punch Design PMPage with the preset die set template
  10. A punch design assembly showing the specified station will be created
