Strip Components

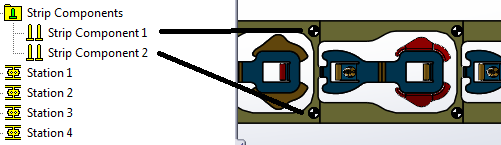

This folder stores the strip component features.

To create a strip component feature and use it to create a pattern of pilot:

  1. RMB on the Strip Components on the strip layout feature tree
  2. Select Insert Strip Components…

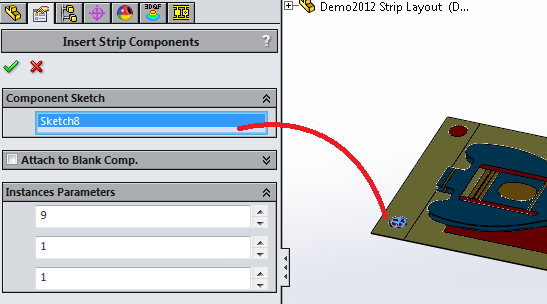

  3. Select a predefined sketch as the Component Sketch
  4. Enter 9 as the Number of Instance and 1 as the Start Position

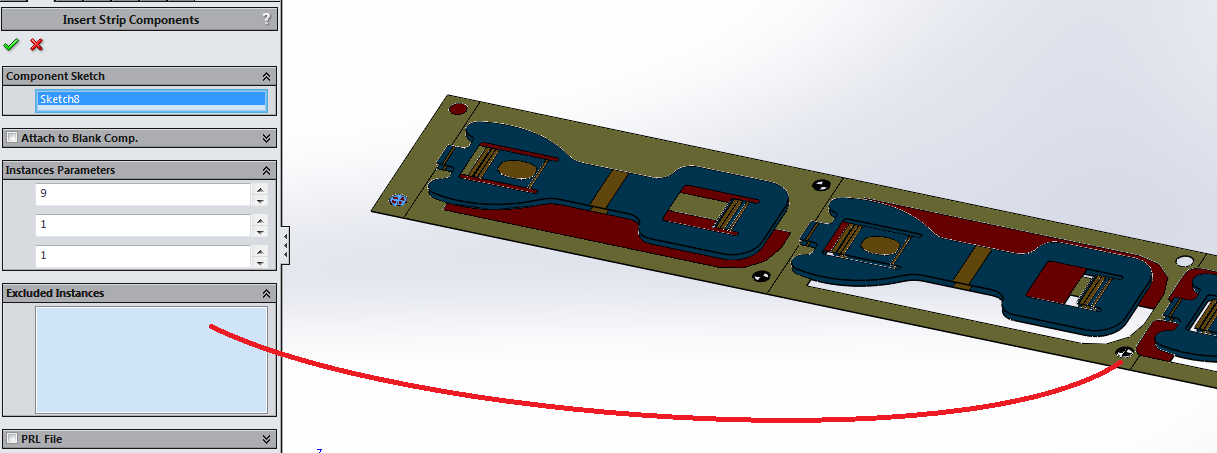

  5. Select the sketch display on station 3 as the Instance to Skip

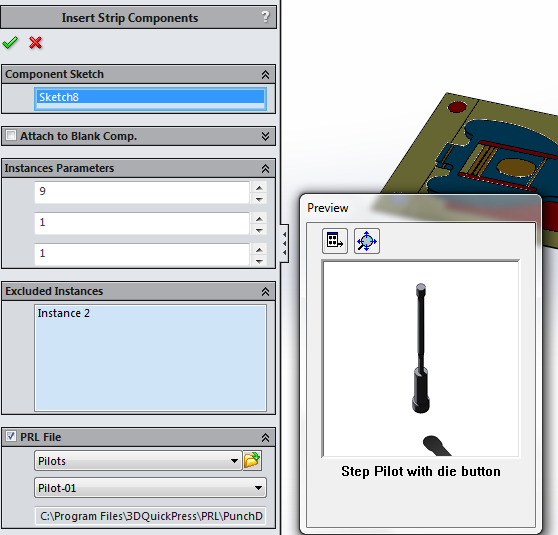

  6. Check the PRL File option
  7. Select the Pilot-01 template
  8. Click OK to create the strip component feature
  9. Create or switch to punch design assembly

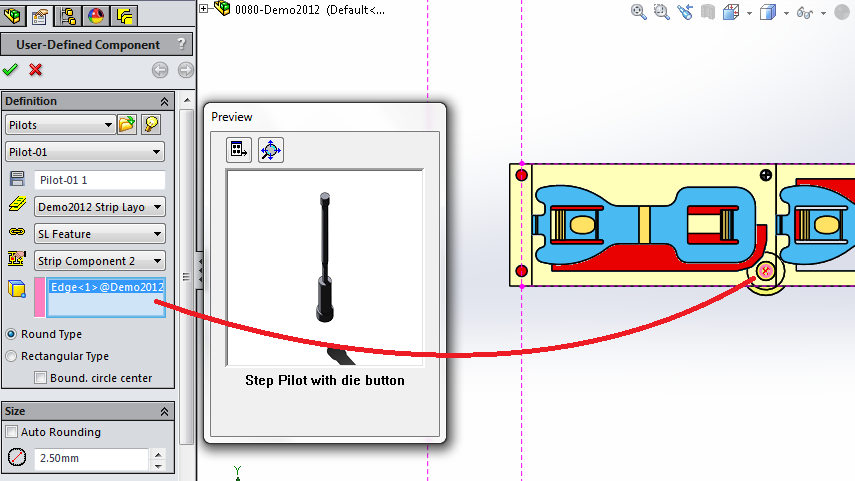

  10. Click Create UDC  on the 3DQuickPress PRL toolbar
  11. Select the sketch symbol of strip component 2

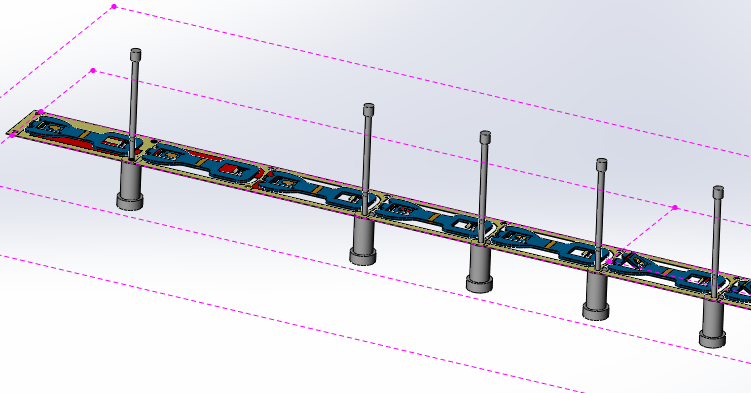

  12. Click OK to create the pilot component pattern with the 2nd instance skipped
