Dimlist.txt

Dimlist.txt

This file is located in <3DQP>\Database folder for Modify Dimension and Pre-Defined Dimension.

Format for dimlist.txt

{Type},{Name},{Description},{<dimension list>}

Type – S = System variable; U – User Defined variable

Name-Dimension Name

Description-Descritption of the variable

Dimension list- Unit followed by values with comma delimited

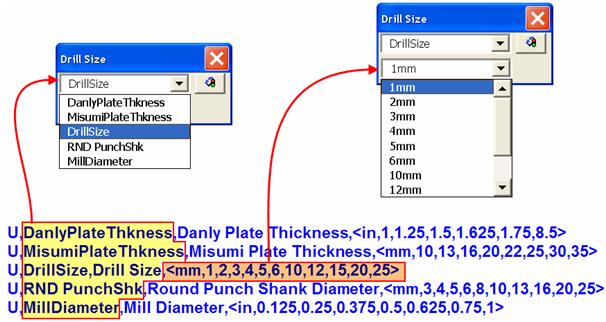

Example for DrillSize

U,DrillSize,Drill Size,<mm,1,2,3,4,5,6,10,12,15,20,25>
