Display

3 icons from 3DQuickPress Display Tool Bar are used to control the display of SolidWorks model and 3DQuickPress unfold part.

 Show Original Solid

Toggle the display of SolidWorks solid body

 Show Unfolding Model

Toggle the display of 3DQuickPress unfold model

 Toggle Unfolding Display

Switching the display of 3DQuickPress model and original Solid body

Examples:

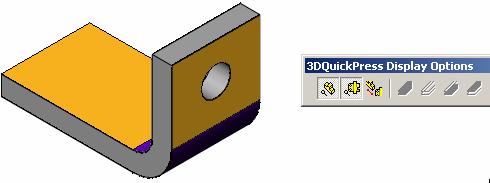

  1. Both SolidWorks original body and 3DQuickPress unfold part are display.

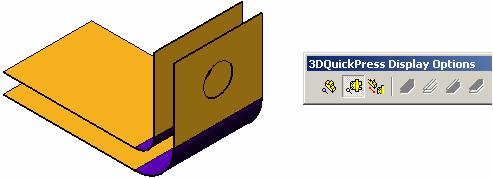

  1. Only 3DQuickPress Unfold Part is display.

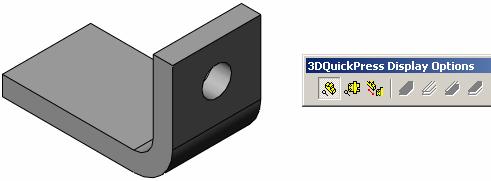

  1. Only the original body is display
