Fold/Unfold

Global Level

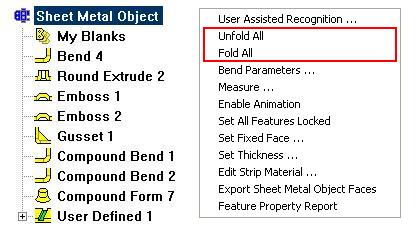

Global level Fold/Unfold is available from Sheet Metal Object shortcut menu.

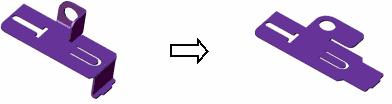

Unfold All

Unfold all the features in the Unfold Manager Design Tree

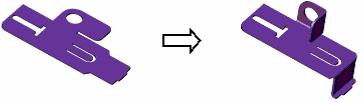

Fold all

Fold all the features in the Unfold Manager Design Tree

Feature Level

Feature level Fold/Unfold is a toggle feature available from Feature shortcut or Model View shortcut menu



To unfold a feature from Unfold Manager:

  1. Right Mouse Select a Feature from Unfold Manager
  2. Select Unfold

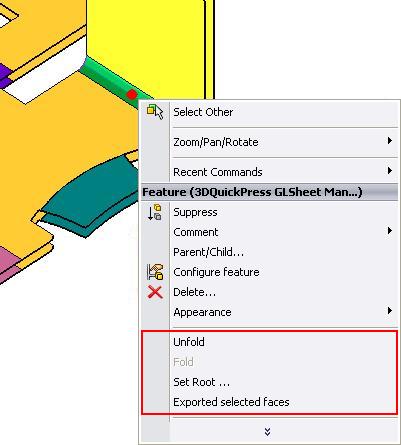

To unfold a feature in Model View:

  1. Select a feature
  2. Click Right Mouse Button and select Unfold
