Feature Property

Feature property is available for all features with corresponding information.

To display bend information and create a summary for all features in the part:

  1. RMS a Bend Feature from Unfold Tree and select Feature Property…

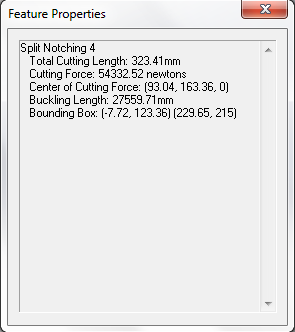

  1. Read the properties

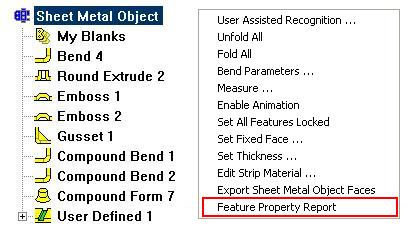

  2. RMS  Sheet Metal Object from Unfold Tree and select Feature Property Report

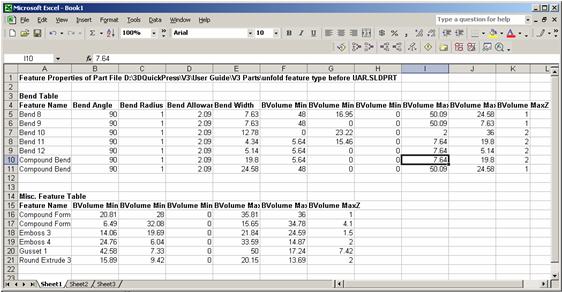

  1. Save the Excel Spread Sheet
