In-place bending

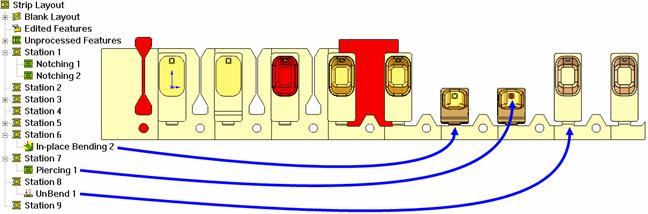

In order to facilitate complicated bending or forming, designer will bend the part and then flatten it after forming, the bend is not part of the feature in the part. In-place bend works like SolidWorks Sketched Bend

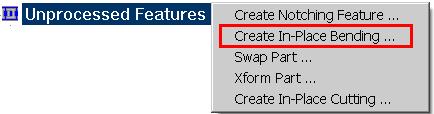

In-place Bend Types – The bend is apply to the stock or part

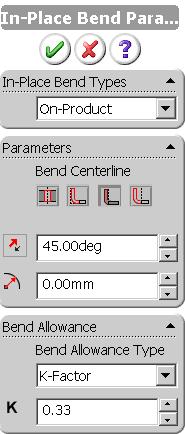

Parameters-Enter the bend position, angle, and internal bend radius

Bend Allowance-Input the bend allowance calculation method

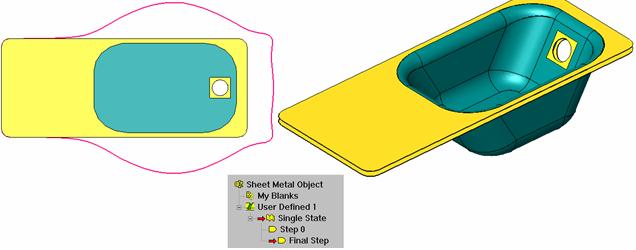

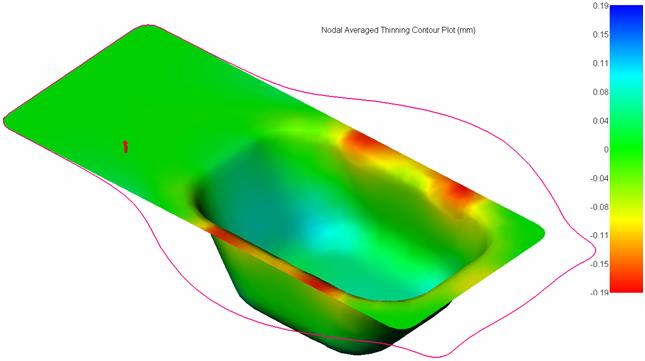

The following deep draw part has a hole which should be pierced after forming in order to keep the precision. Although the blank result from 3DQuickPress is in pear shape, we use a projection for the blank as the final size of the part will be cut to size after forming.
