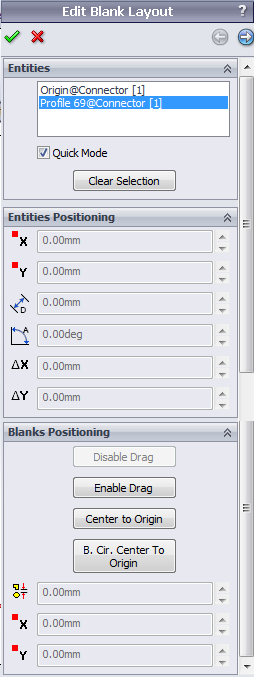

PropertyManager for Edit Blank Layout

        Entities - Select entities from blank. If Use Mid Point is checked, mid point will be used for selected lines. Virtual mid point will be used if 2 points were selected.

        Entities Positioning - Set the position of the selected entities

o          Set X coordinate of selected point

o         Set Y coordinate of selected point

o         Set minimum distance of the selected entities

o         Set the angle of selected entity/entities

o         Set X coordinate of 2nd point relative to the 1st point selected

o         Set Y coordinate of 2nd point relative to the 1st point selected

        Blank Positioning – set position of the selected blanks

o        Disable Drag – Disables movement of the blank by drag and drop.

o        Enable Drag – Enable movement of the blank by drag and drop.

o        Center to Origin- centering the selected blank to origin.

o        B. Cir. Center to Origin- centering the bounding circle center of the selected blank to origin.

o         Move the selected blanks to absolute X by using the 1st selected point as reference

o         Move the selected blanks to absolute Y by using the 1st selected point as reference
