PropertyManager for User Assisted Recognition

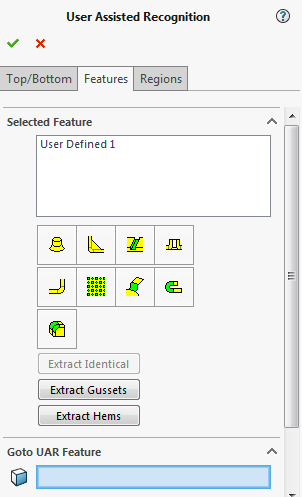

Selected Feature - Feature selected, right click to rename and delete a feature

Add - create a new UAR Feature

• UAR Form - To recognize complex form feature
• Gusset - To recognize gusset feature
• User Defined - To handle complex region and multi-step forming
• UAR Round Extrude - To recognize Round Extrude manually deal to geometric or design problem
• UAR Bend - To recognize Bend manually deal to geometric or design problem
• UAR Hole Clustor - To recognize a pattern of hole having the same size
• 2 Axis Bend - To recognize Curved Bend manually
• UAR Hem - To recognize Hem manually deal to geometrci or design problem
• UAR BCorner - To recognize Bend Corner manually between 2 bends.

Extract Identical - Extract identical UAR features

Exract Gussets - Extract gusset features

Extract Hems - Extract hem features

Goto UAR Feature is used to highlight the UAR feature by selecting a face member of the UAR feature in graphic window. It is useful for redefining faces for the UAR feature.

Feature Types can be changed here

Feature Face selection box contains all the faces composed of the highlighted UAR Feature

This page activated by clicking Previous Button

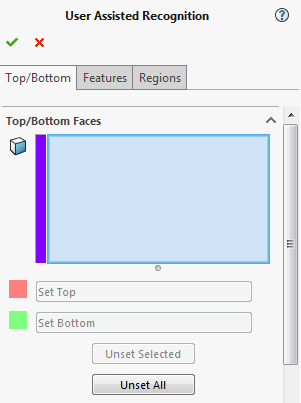

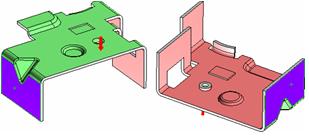

The Top/Bottom Faces are identified by 2 colors

Set Bottom button set the selected faces to bottom faces.

Set Top button set the selected faces to top faces

Unset Selected button remove the selected faces from bottom or top faces.

Unset All button reset all faces to nothing, user has to group all faces to top and bottom manually.

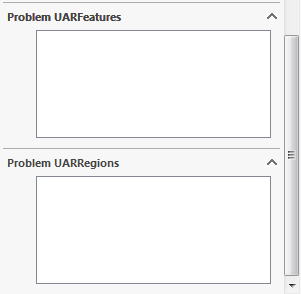

Problem UAR Features list all the problematic UAR features which composed of faces not belong to either top or bottom face group. By selecting the feature inside the list box, 3DQuickPress will fit to the UAR feature to ease selection and fix the problem.

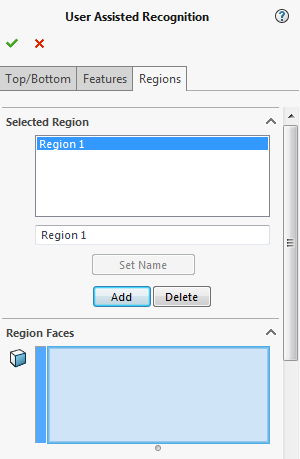

Selected Region - Select region to edit

Set Name - Set name to region

Add - add a region

Delete - delete a selected region

Region Faces - Selection of faces that belongs to that region

Fixed Face - Fix face to determine the region thickness and location of the root face of the region

Sheet Thickness - Thickness of the region

Bend Allowance Type - Select the bend allowance type for unfolding bend feature

K - K factor for bend allowance calculation
