Shoulder Tool

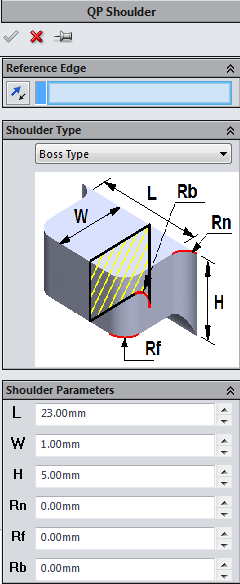

PropertyManager for Shoulder Tool

Reference Edge

Edge selected to add the shoulder or groove

Shoulder Type

Selec to add shoulder or goove

Clearance Entities

Select entities to control the size of the clearance cut pocket.

Parameters

Parameters to control the size of the shoulder or groove
