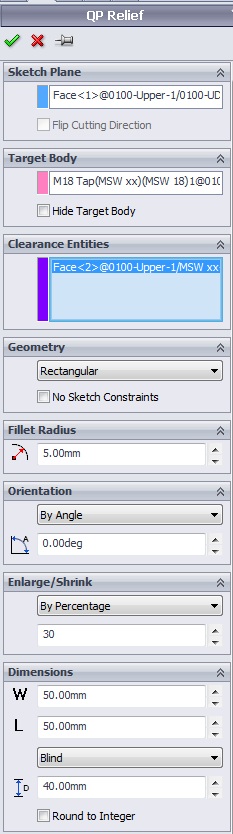

Clearance Tool

Sketch Plane

Select the sketch plane for the extrude cut feature of the clearance pocket.

Flip Cutting direction – flip the cutting direction

Target Body

Target body of cut.

Hide Target Body – hide the target body after cut

Clearance Entities

Select entities to control the size of the clearance cut pocket.

Geometry

Set the clearance pocket to be rectangular or cylindrical.

No Sketch Constraints – no constraint on the pocket cut sketch created

Fillet Radius

Size of the fillet for rectangular type clearance pocket.

Orientation

Orientation of the rectangular clearance pocket.

It can be controlled by angle of rotation or by reference plane.

Enlarge/Shrink

Enlarge or reduce the size of the clearance pocket with the bounding box of the selected entities.

It can be controlled by percentage or by offset distance.

Dimensions

Width and length of the rectangular pocket and diameter for cylindrical pocket.

Depth of the cut pocket with blind and through options.

Round to Integer – round the numbers to integer.

Four Side Adjustment

Adjust the offset of each side from the center of the pocket.
