Surface utilities

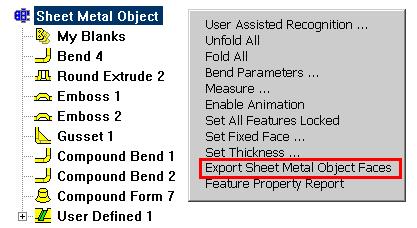

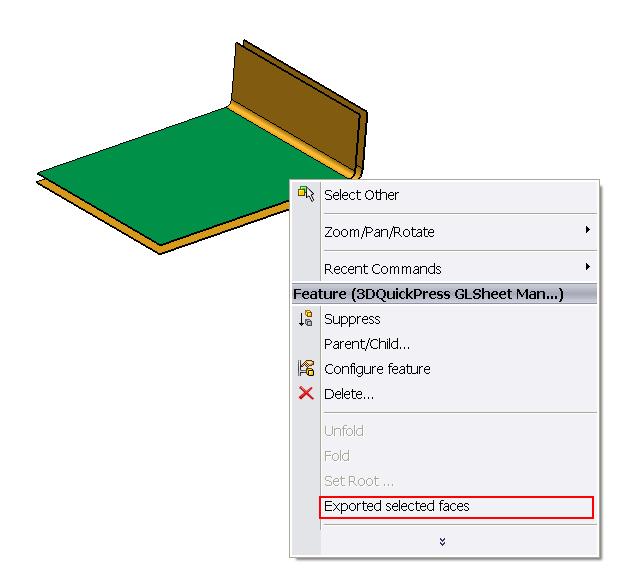

Export Face





Create faces from 3DQuickPress geometry for User Defined Feature blank faces and intermediate steps.

 Patch Hole

Create faces to patch the holes of the selected faces or edges

To patch a hole:

  1. Click

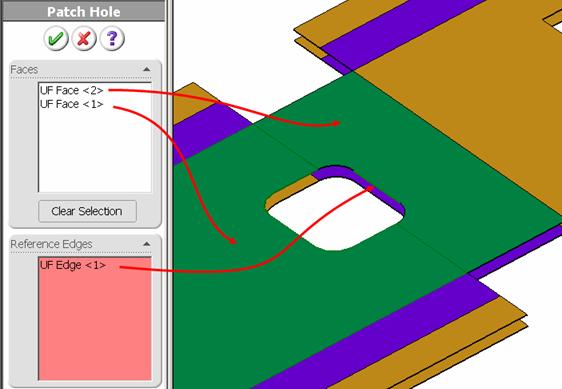

  2. Select faces and edge to indicate which hole to patch

  1. Click OK to finish.



 Patch Notch

Create faces to patch the notch of the selected faces & edges

To patch a notch area:

  1. Click

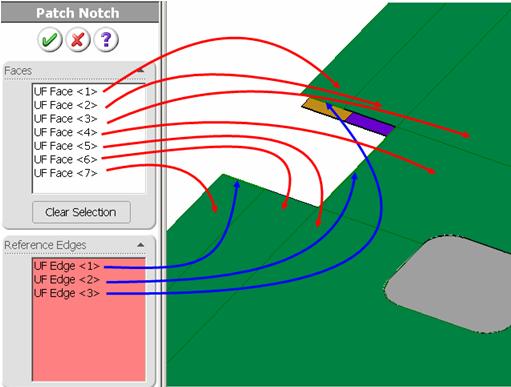

  2. Select faces and select at least 3 edges which must include start, end of the notch
  3. Click OK to finish

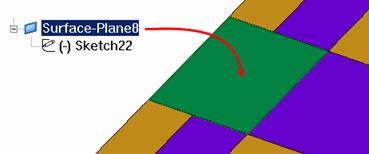

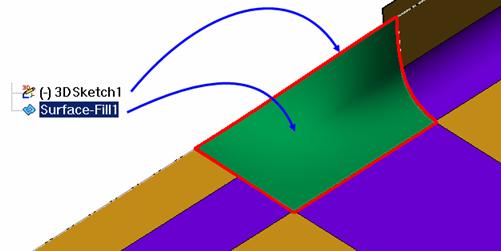

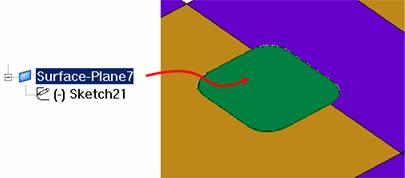

For both features, a planar face will be created if the selected faces are co-planar. Otherwise, a Fill surface will be created with 3DSketch. Here is an example of 3D patch for notch.
