Xform Part

Xform part is used to handle multiple step stamping by single operation dies or transfer die instead of progressive die, those tooling requires the blank flip; part rotate; or translated.

Deep drawing part selecting the bottom face as fixed face and create unreasonable layout. By using Xform part, the Z-datum is corrected.

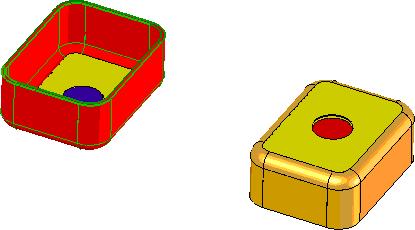

The burr direction of the hole requires the piercing operation must be done offline single. The part is flipped by Xform part rotate option.

Xform Part works similar to SolidWorks Move/Copy Bodies

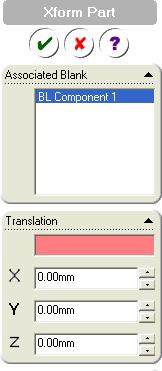

Highlight the blank to be transformed in the Associated Blank list box

Translation can move the blank from point to point or Delta X,Y, Z direction

Rotation will rotate the part at an angle about a selected line segment in sketch
