Depth Indicator

Parent Previous Next

Depth Indicator

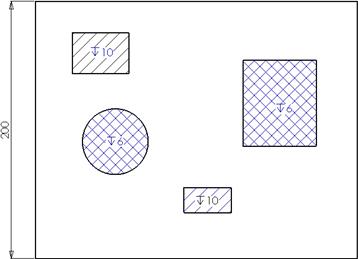

This is an annotation tool in drawing environment to measure the depth of the face and then put the depth annotation and cross hatch the area.

To create depth annotation:

  1. Select the face you want to annotate
  2. Click 3DQuickPress, Drawing & Machining, Depth Indicator
