Hole Table Editor

Hole table utilities allow users to change the decimal place of the hole position and automatically extract the manufacturing information of the hole which is classified by face color.

To add machining information to Hole Table:

1.      Click 3DQuickPress, Drawing & Machining, Hole Table Editor

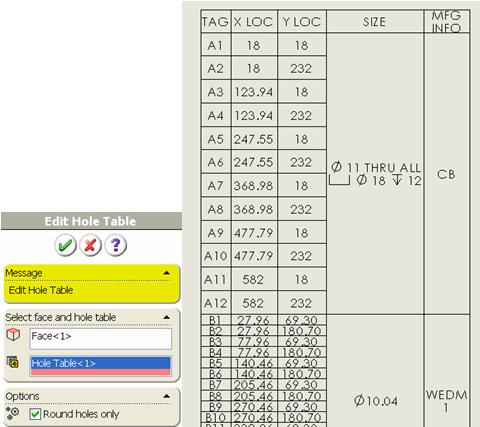

2.      Select top face and the table, check Round holes only, click OK to launch balloon editor.

3.      Click OK to finish.
