Edit Component Size

Dieset Design ››
Parent Previous Next

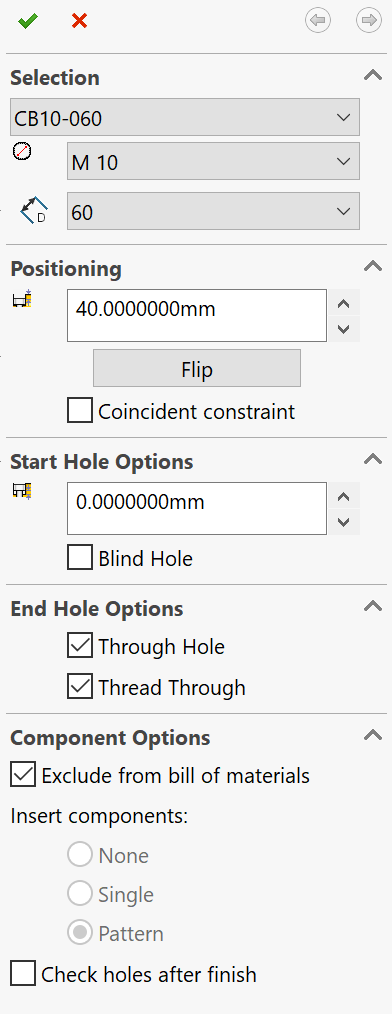

PropertyManager for Edit Component Size

Selection

Configuration – configuration of component

Diameter Size – Diameter of component

Length – Length of component

Positioning

Adjust the position of the component.

Offset – Z level offset of the component from the Datum Face

Flip – change the orientation and offset direction of the component

Coincident constraint - apply sketch constraint on layout sketch

Start & End Hole Options

Start Option:

CB depth offset – depth offset of CB hole

Blind Hole - blind hole will be drilled instead of through hole

End Options:

Through Hole – through hole option of drill hole

Thread Though – through hole option of thread hole

Component Options

Exclude from BOM – exclude the inserted component from BOM

Insert component options:

None – no component is inserted and only component hole is created

Single – components are inserted as single component

Pattern – components are inserted as a feature driven pattern

Check holes after finished - check hole condition after function finished
