Edit Notching Feature

To edit notching feature:

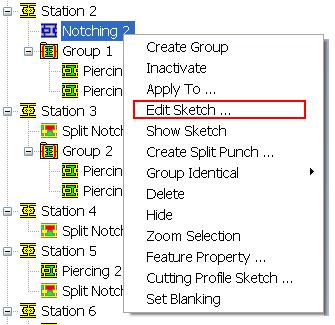

  1. RM select Notching Feature and click Edit Sketch …

  2. Use Solidworks Sketch tools to edit the Notch punch profile
  3. Click OKand the Notch punch will be updated

To edit split notching feature:

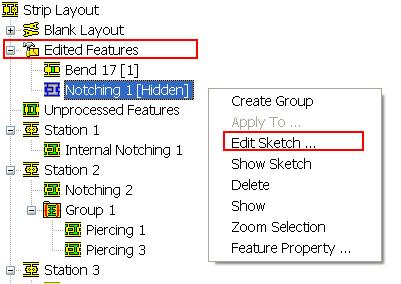

  1. RM select Notching Feature in Edited Features folder and click Edit Sketch …

  2. Use Solidworks Sketch tools to edit the Notch punch profile
  3. Click OKand the Notch punch will be updated and all child split notching feature will update
