Import SL Surfaces

This function is used to import strip layout surface to any component in the dieset. This function should be used whenever the strip layout part is modified so that the latest strip layout is imported to the SL in dieset. The old surface in SL will be kept for future reference.

To imported updated strip layout surface to dieset strip layout file

  1. Open dieset assembly

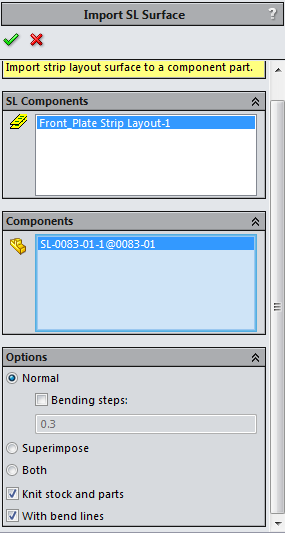

  2. Click Dieset Design, Import SL Surfaces
  3. If SL-xxxx-xx already exists, it will be automatically selected.
  4. Select additional component you would like to have strip layout
  5. Click OK when finished. A Feature folder containing the strip layout will be created
