Profile Grind

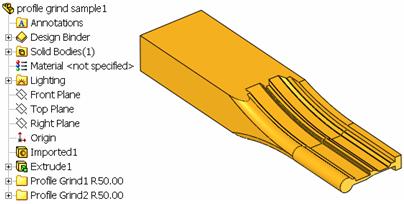

Model profile grind transition

To create profile grind transition

1.      Click 3DQuickPress, 3DQuickTools, Profile Grind …

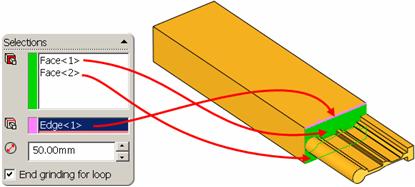

2.      Select Faces to be broken. Select edge for grinding direction and input grinding wheel diameter



3.      Click OK
