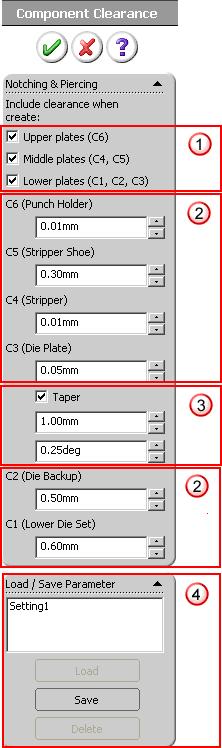

Property Manager for Component Clearance

  Check box to toggle the creation of hole body in Cutting punches

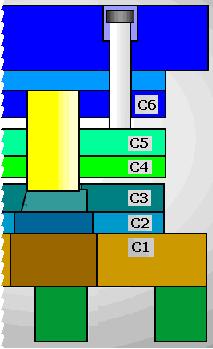

 Set the clearance in for each plates

 Toggle for the creation of Taper in die plate, Set theWear Land and Taper angle



 Save & Retrieve clearance
