Set root

Set root

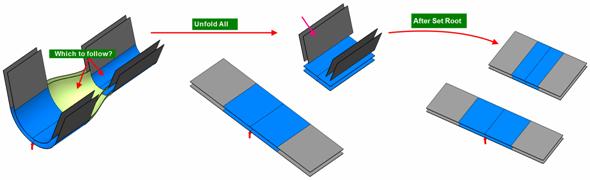

Some geometry which may adjacent to more then 1 features and it creates ambiguous condition. Set root is designed to handle situation like this.

To correct the problem using set root:

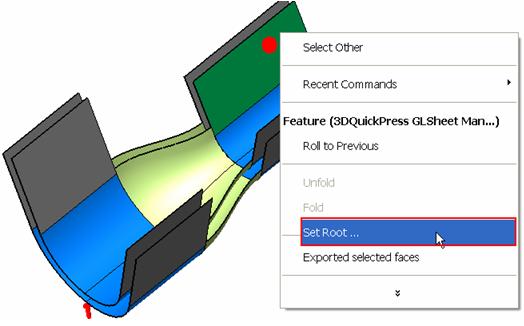

1. Right click on the face and click Set Root

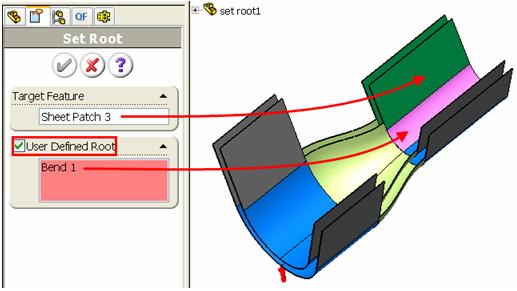

2. Check User Define root; select the feature which drive the target feature.
