Split bend

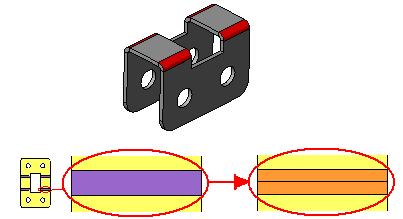

Split Bend is a function used in Strip layout to create partial bending. By using split bend, processes for features like hem, tube can be designed.

To create split bend:

  1. RM click on any bend icon and select Create Split Bend
  2. Input number of split section and the bend angle for each child.
