Strip Layout Display

 Show All

Show the display of the Strip Layout

 Hide All

Hide the display of the Strip Layout

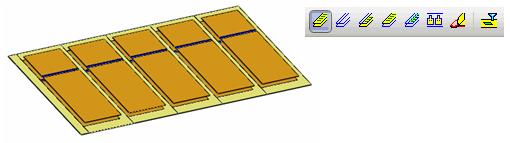

 Hide/Show Top

Toggle the display of the top piece of the Strip Layout

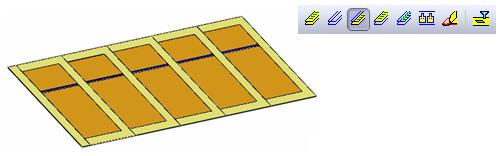

 Hide/Show Bottom

Toggle the display of the bottom piece of the Strip Layout

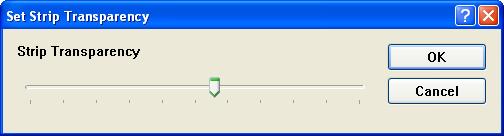

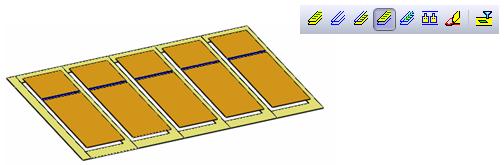

 Transparent

Adjust the transparency of the display of the Strip Layout

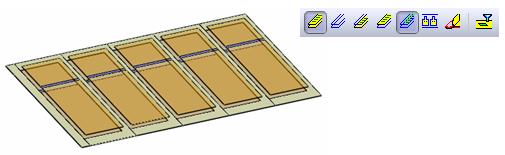

 Hide/Show Outer Faces

Toggle the display of the outer faces

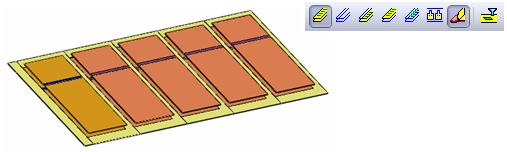

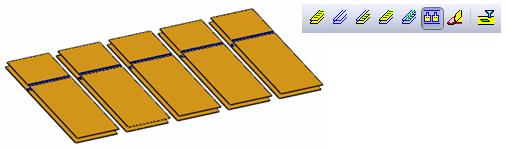

 Superimpose

Show superimposed strip layout



 Filter Features

When this option is enabled, the user can only select the SolidWorks features and cannot select any feature of the Strip layout

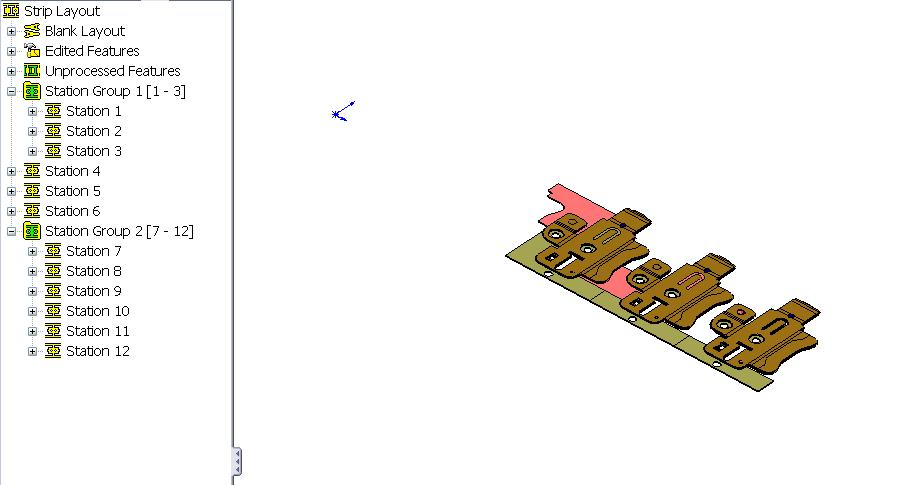

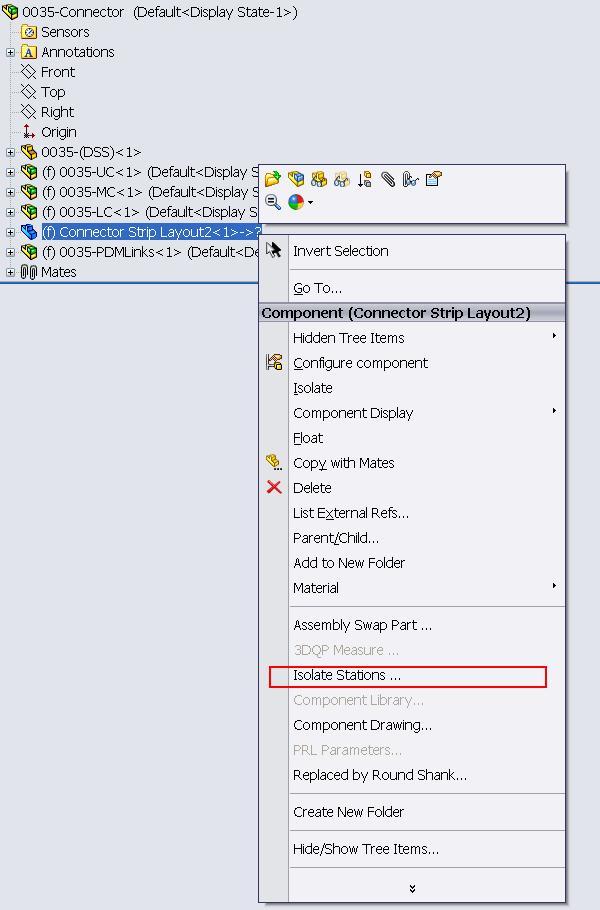

Isolate stations

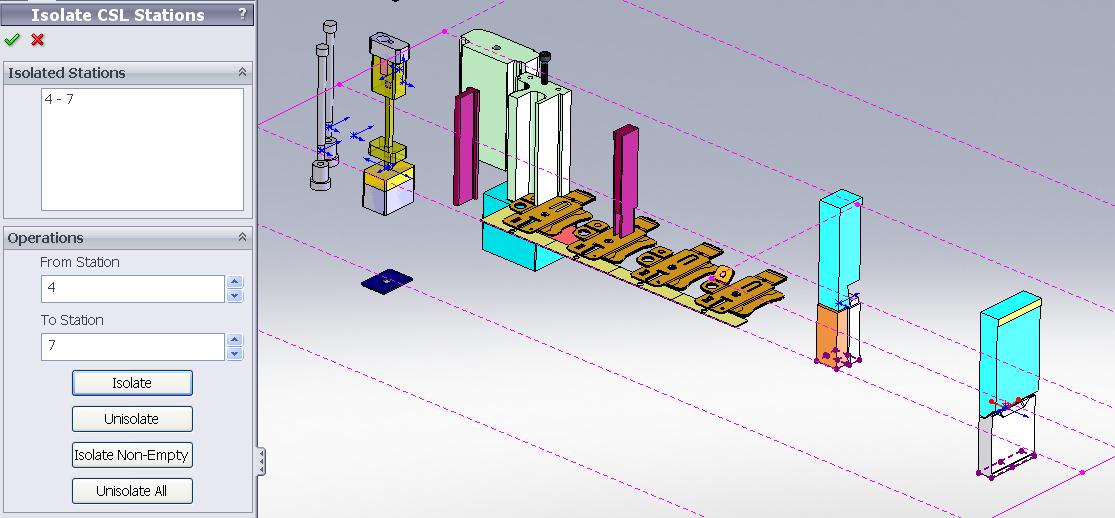

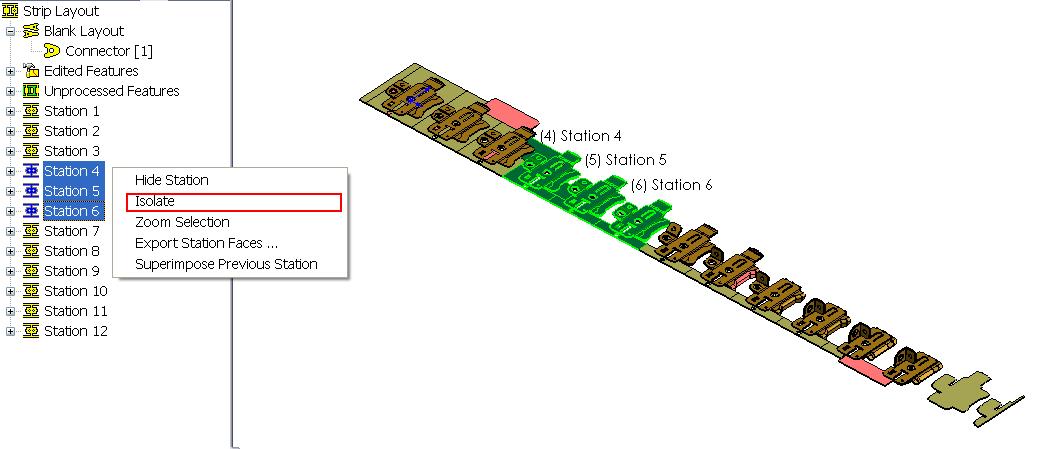

Isolate station can be used to show only selected station on the strip layout

Isolate station can also be used in punch design assembly

Strip Layout Animation

Strip layout animation can be used to show the animation of the strip during process

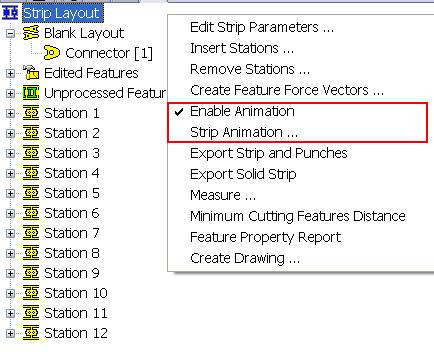

  1. Turn on the strip animation by RM on the Strip Layout on the feature tree and select Enable Animation
  2. Select Strip Animation to turn on the strip animation interface

  1. Set the height that the strip will be lifted up and click Start to start the animation

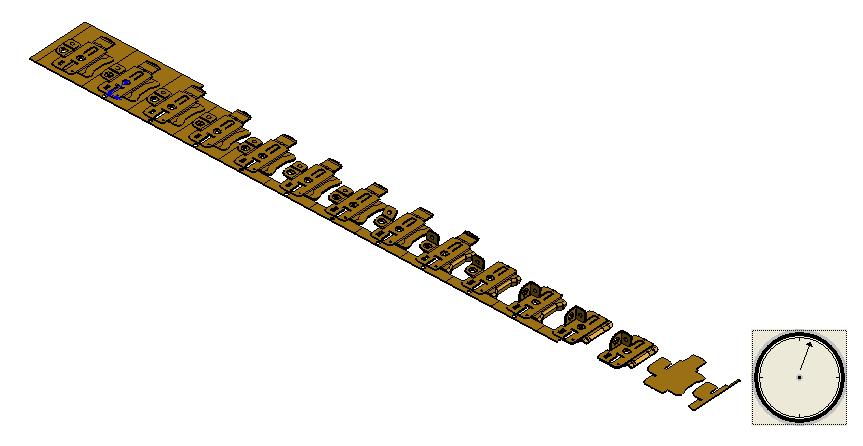

  1. Click on the graphic window to pause the animation and drag the clock to play the animation forward and backward
  2. Click Stop to stop the animation
