 Translate Components

Translated fixed component with .X .Y .Z filter

Translate as copy – If checked, the select component(s) will be translated and copied.

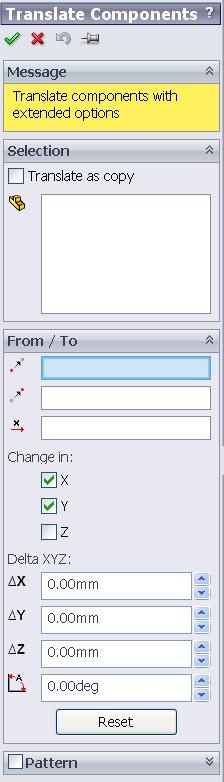

From: select the translation start point

To: select the translation end point

X-reference: select the direction for X reference of translation



Change in:

X – uncheck to prohibit X change

Y -  uncheck to prohibit Y change

Z - uncheck to prohibit Z change



Delta XYZ:

Delta X – Addition translation in X direction

Delta Y – Addition translation in Y direction

Delta Z – Addition translation in Z direction

  Rotate the component(s) after translate

Reset – Reset All Delta change to 0

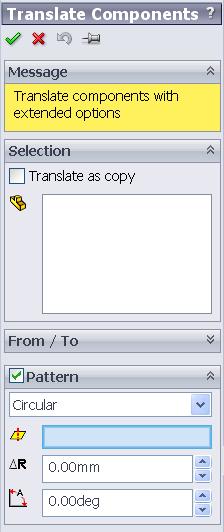

Pattern:

Z-referenceselect the direction for Z reference of circular pattern

Delta R – Addition translation along the radius direction

Rotation angle– Addition angle of rotation
